Product Overview

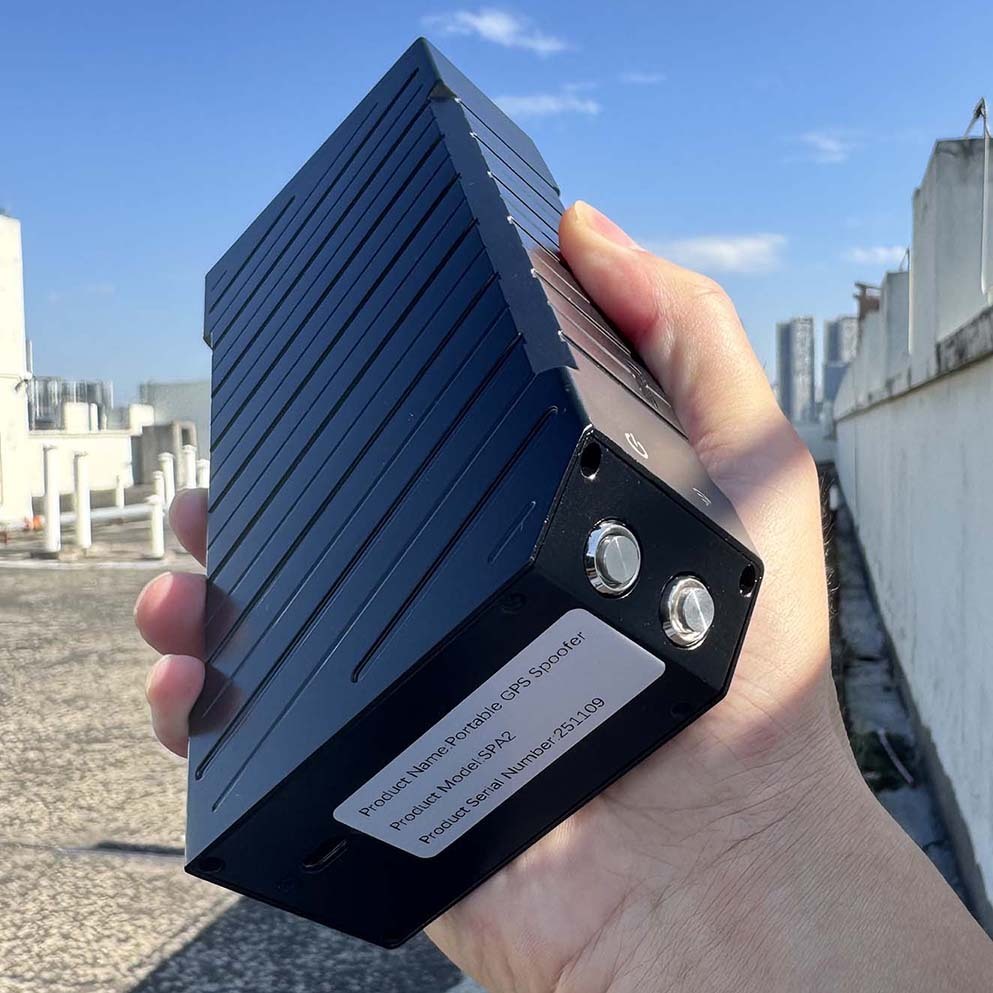

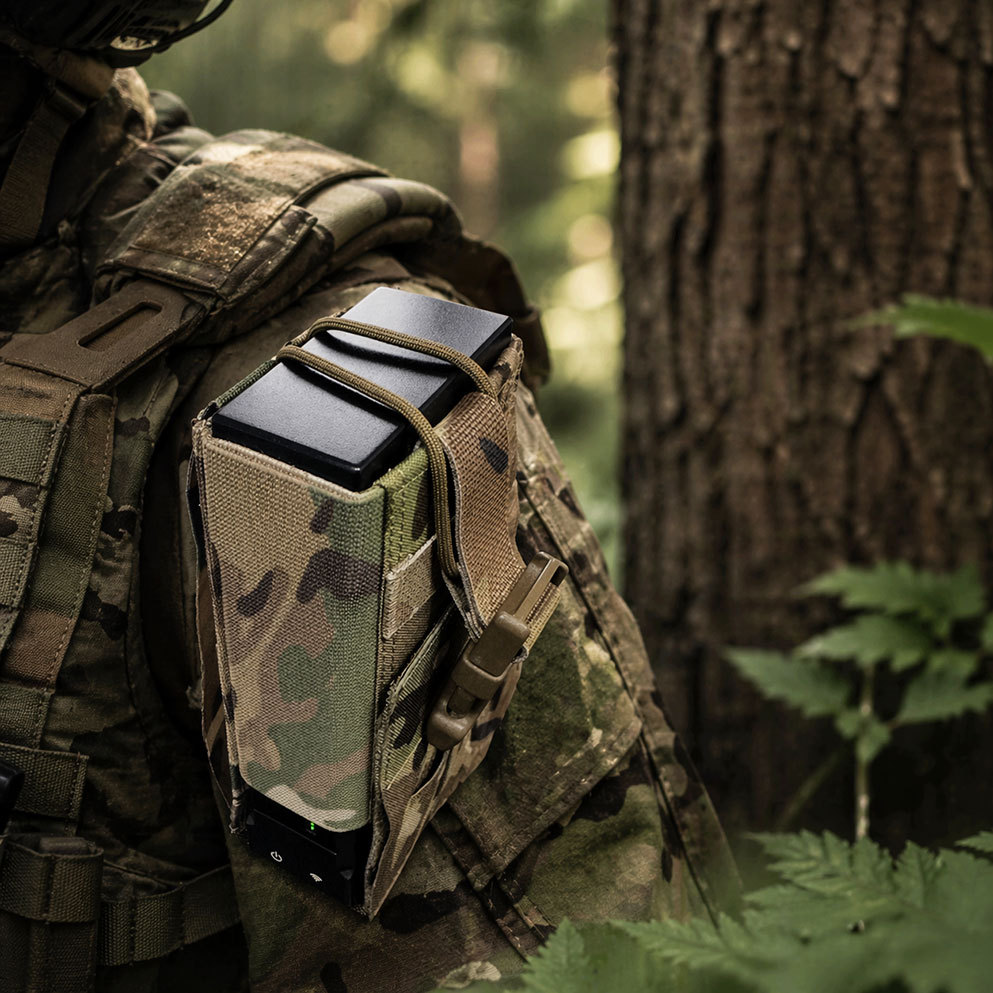

SPA2 is a man-portable navigation spoofing terminal purpose-built for individual soldier protection, vehicle-mounted escort missions, and forward base security against low-altitude drone threats.

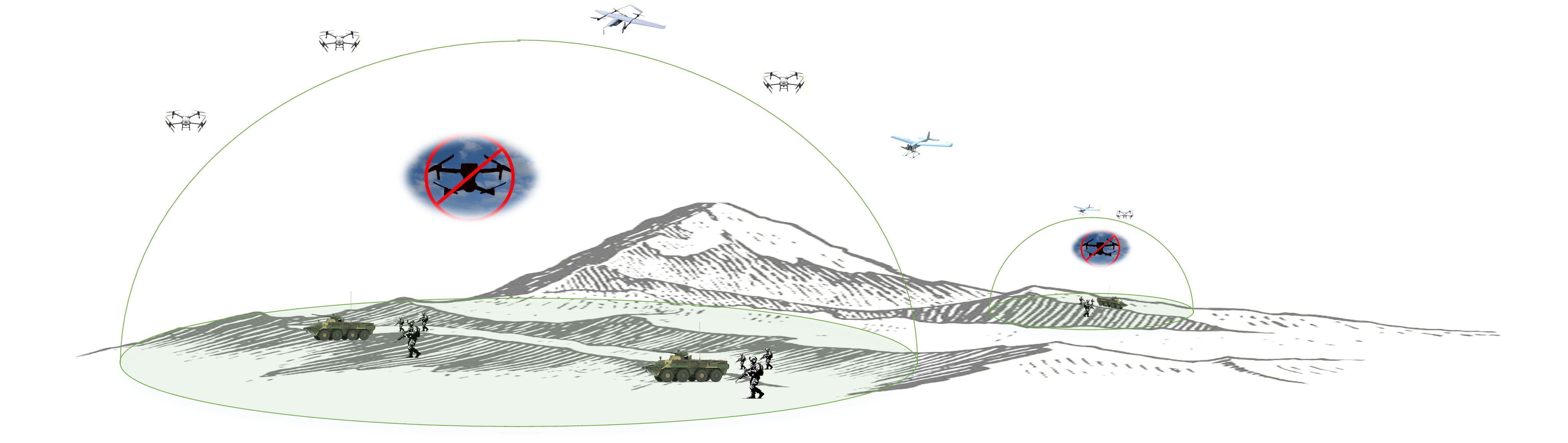

Designed in a compact handheld form factor, SPA2 creates an instant 360° tactical defense bubble through high-precision GNSS signal simulation. With a single-button activation, unauthorized drones inside the protected zone are prevented from takeoff, while incoming drones are denied access to the defended perimeter.
Key Features
|
No. |
Product |
Features |
|
1 |
One-Click 360° Defense Bubble |
SPA2 creates an instant full-azimuth electronic protection zone with a single-button activation. Unauthorized drones inside the protected area are prevented from takeoff, while incoming drones are denied entry. |
|
2 |
Fast GNSS Spoofing Response |
The system establishes the spoofing chain within ≤5 seconds, enabling immediate reaction to sudden low-altitude drone threats. |
|
3 |
Precision GNSS Signal Simulation |
SPA2 simulates authentic GNSS navigation signals to:
|
|
4 |
Multi-Platform UAV Compatibility |
Compatible with mainstream GNSS-dependent drone platforms, including:
|
|
5 |
Integrated Ruggedized Design |
The signal simulation generator, antenna, control electronics, and power system are fully integrated into a single compact IP66-rated enclosure, ensuring field durability and simplified deployment. |
|
6 |
Minimal Collateral Electromagnetic Impact |
With milliwatt-level transmission power (EIRP < 1W), SPA2 minimizes interference to nearby friendly communications and surrounding electromagnetic environments. |
|
7 |
Extended Tactical Endurance |
The built-in 6000mAh battery supports up to 6 hours of continuous operation, ideal for patrol, convoy escort, and temporary base defense missions. |
Technical Specifications
|
NO. |
Parameter |
Specification |
|
1 |
Product Model |
SPA2 |
|
2 |
Countermeasure Method |
GNSS Navigation Spoofing |
|
3 |
Supported Bands |
GPS L1 / Galileo E1 / GLONASS G1 |
|
4 |
Response Time |
≤ 5 s |
|
5 |
Effective Radius |
200–800 m |
|
6 |
Coverage |
360° |
|
7 |
Battery Capacity |
6000 mAh, can charges via Type-C port |
|
8 |
Working Time |
Up to 6 h |
|
9 |
Weight |
≤ 0.85 kg |
|
10 |
Dimensions |
88 × 42 × 189 mm |

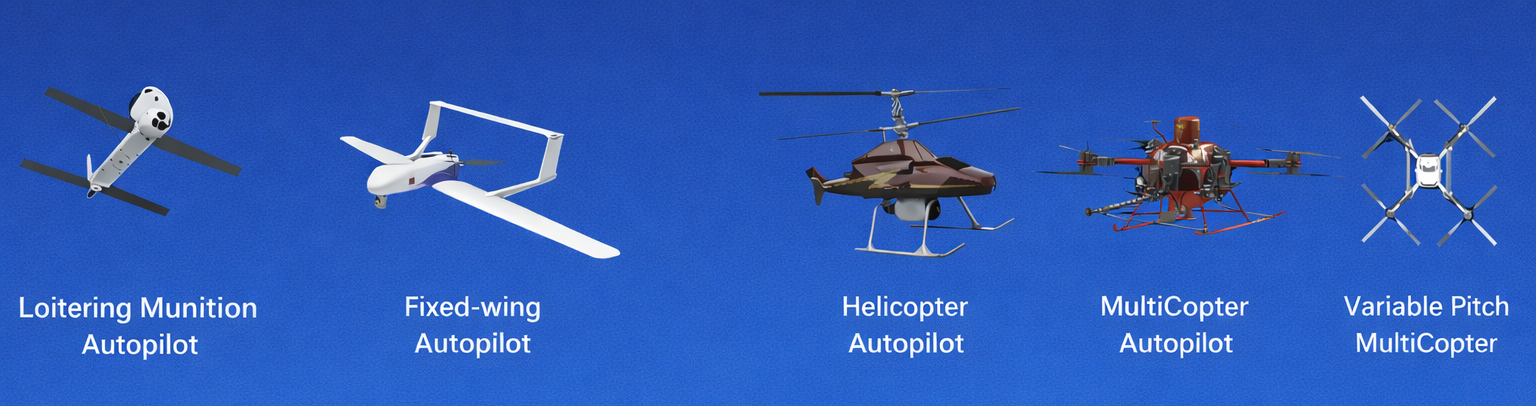

SPA2 is suitable for spoofing the following types of unmanned systems:
But when hostile drones are equipped with advanced CRPA anti-jamming / anti-spoofing terminals such as 4-element GAP2501/AJT105S or 16-element AJT120S, spoofing effectiveness may be significantly reduced or neutralized.
