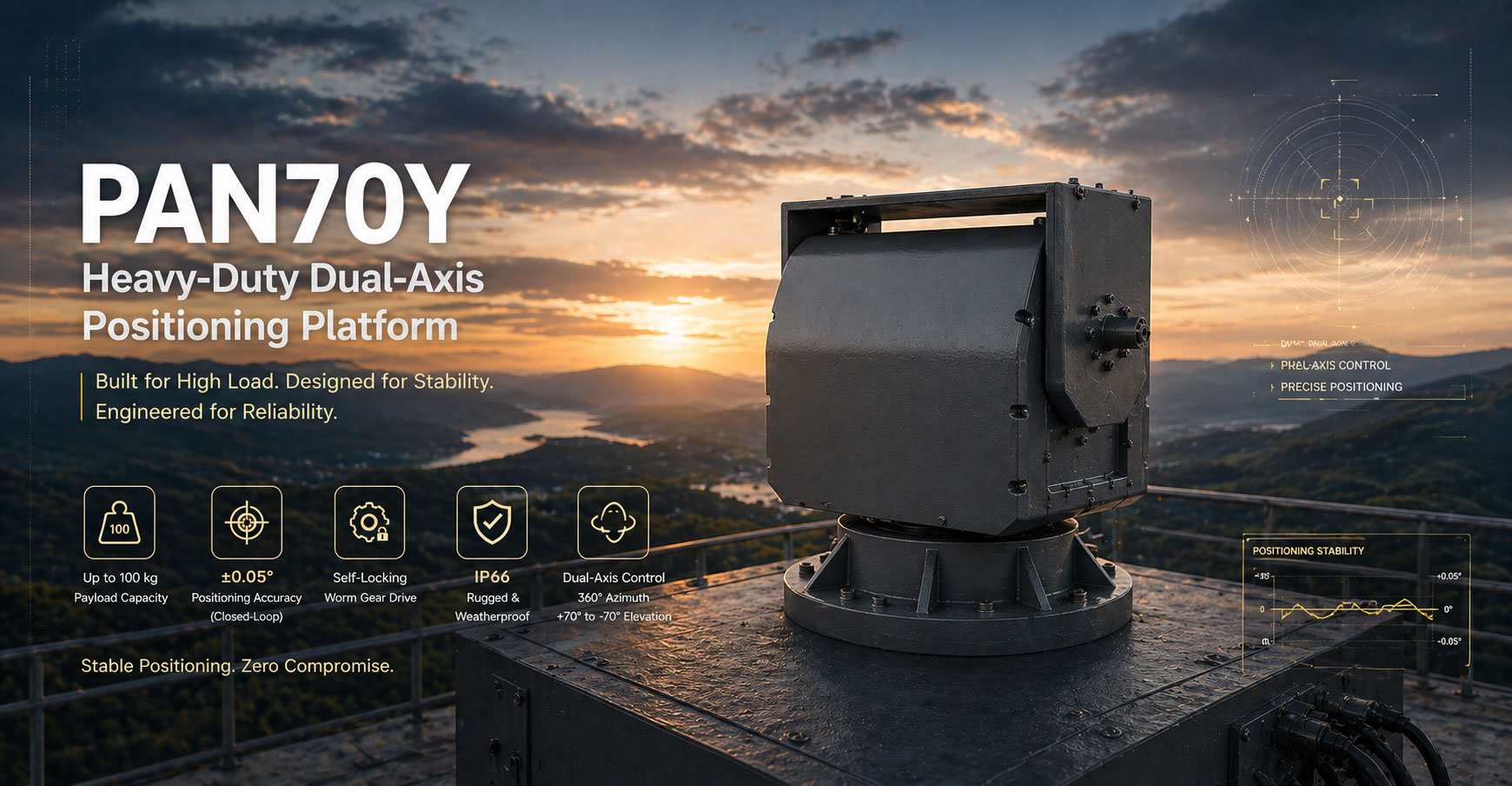

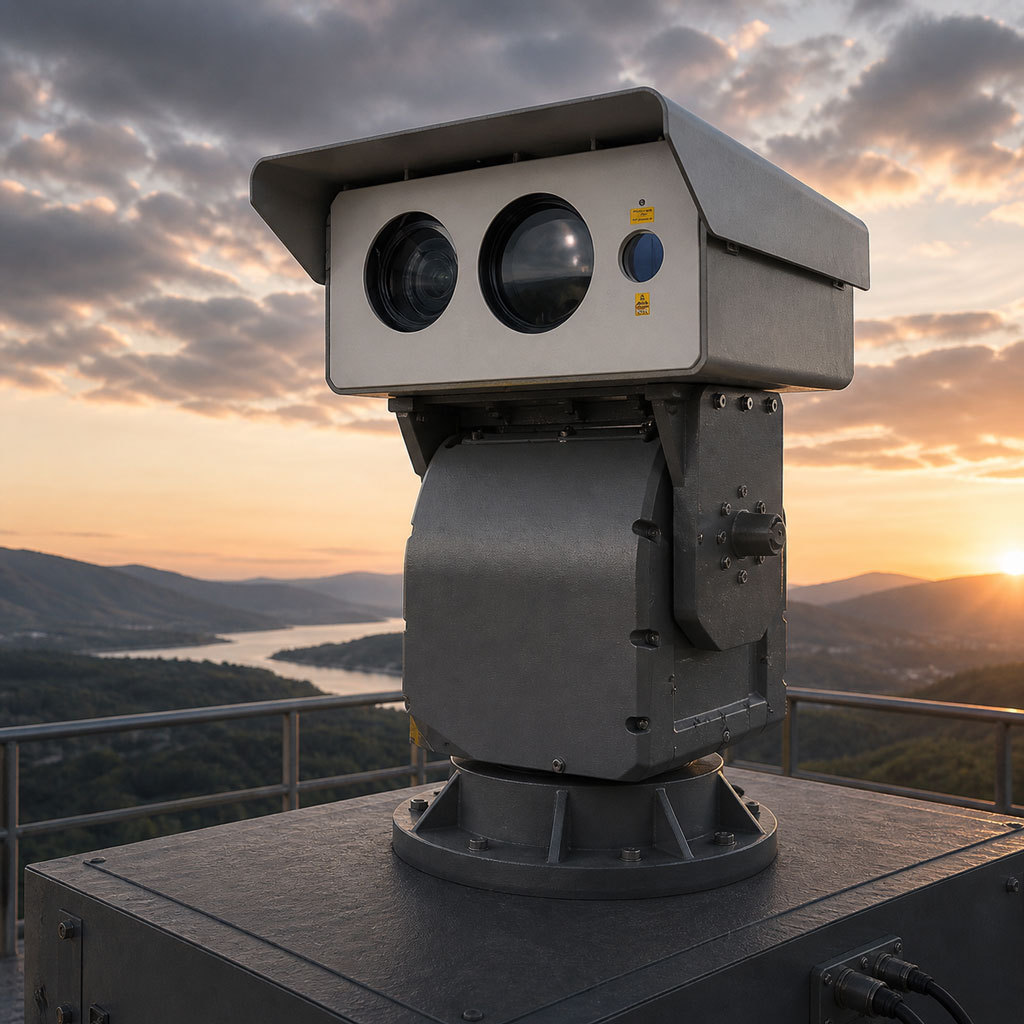

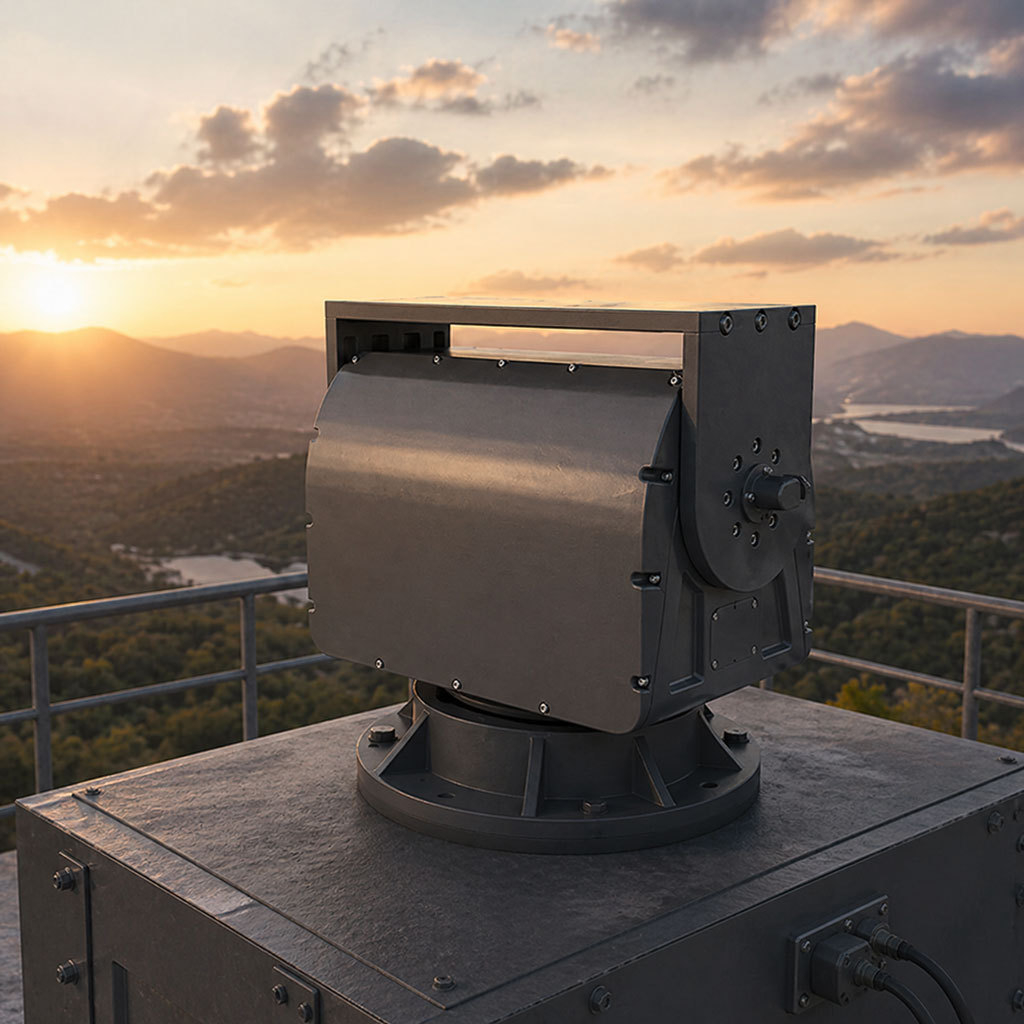

Heavy-Duty Dual-Axis Positioning Platform for High-Load and Stable Operation
Built for high-load systems requiring stable and precise pointing.
Self-locking mechanism ensures reliable positioning even during power loss.
Key Highlights
Core Capabilities
|
Capability |
PAN70Y Performance |
User Value |
|
Heavy Payload Support |
Up to 70 kg (100 kg customizable) |
Supports large radar and antenna systems |
|
Dual-Axis Positioning |
Azimuth + Elevation control |
Enables full spatial targeting and tracking |
|
Self-Locking Mechanism |
Worm gear drive with power-off locking |
Maintains position without drift or sagging |
|
Precision Positioning |
±0.1° (±0.05° with closed-loop) |
Stable and repeatable alignment |
|
Controlled Motion Speed |
Azimuth up to 50°/s, Elevation up to 10°/s |
Smooth and reliable movement for steady operation |
|
Structural Stability |
High-strength aluminum construction |
Ensures long-term durability under heavy load |
|
Environmental Adaptability |
-25°C to +65°C, IP66 |
Suitable for outdoor and mission-critical deployment |
|
System Integration Support |
Standard communication interfaces |
Easy integration with control systems |
Technical Specifications
|
Parameter |
Specification |
|
Model |
PAN70Y |
|
Rotation Speed (Azimuth) |
0.01° – 50°/s |
|
Rotation Speed (Elevation) |
0.01° – 10°/s |
|
Rotation Range (Azimuth) |
360° continuous |
|
Rotation Range (Elevation) |
+70° to -70° |
|
Positioning Accuracy |
±0.1° (±0.05° with closed-loop) |
|
Preset Positions |
200 |
|
Payload Capacity |
70 kg (up to 100 kg customizable) |
|
Drive Type |
Worm gear drive |
|
Communication Protocol |
Pelco-D / Pelco-P |
|
Communication Interface |
RS485 (optional RS422 with feedback) |
|
Baud Rate |
2400 / 4800 / 9600 / 19200 bps |
|
Power Supply |
DC48V ±20% |
|
Power Consumption |
≤200W |
|
Operating Temperature |
-25°C to +65°C (optional -40°C) |
|
Storage Temperature |
-40°C to +70°C |
|
Protection Level |
IP66 (up to IP67 optional) |
|
Weight |
≤46 kg |
|
Dimensions |
464 × 308 × 400 mm |
|
Model |
Positioning Role |
Axis |
Max Payload |
Speed Range |
Accuracy |
Key Strength |
Typical Payload Type |
Best Use Case |
|
PAN200F |
Multi-Sensor Integration Platform |
Dual-axis |
Top 100kg + Side 50kg×2 |
Up to 100°/s |
±0.03° |
Multi-sensor alignment (same coordinate system) |
Radar + EO/IR + RF + Jammer |
Complete counter-UAS / integrated systems |
|
PAN80R |
High-Speed Radar Platform |
Single-axis |
80kg |
Up to 180°/s |
±0.05° |
Ultra-fast mechanical scanning |
Doppler radar / phased-array radar |
Radar scanning & airspace monitoring |
|
PAN70Y |
Heavy-Duty Stable Platform |
Dual-axis |
70–100kg |
Medium speed |
±0.05° (closed-loop) |
Self-locking + high stability |
Large radar / antenna / EO systems |
Fixed-point monitoring / heavy payload |
|
PAN3Y |
Lightweight Mobile Platform |
Dual-axis |
3kg |
Low speed |
±0.1° |
Compact + low power + mobile-ready |
Small EO/IR / sensors |
Vehicle / UAV / portable deployment |
We don’t just provide platforms — we enable full system integration:
Standardized Communication Protocols
→ Seamless control of sensors, payloads, and external systems
Interface-Level Integration Support
→ Electrical, structural, and data interface alignment
System-Level Coordination
→ Multi-sensor synchronization（Especially with PAN200F）
Engineering Support During Integration
→ From mounting to system commissioning
