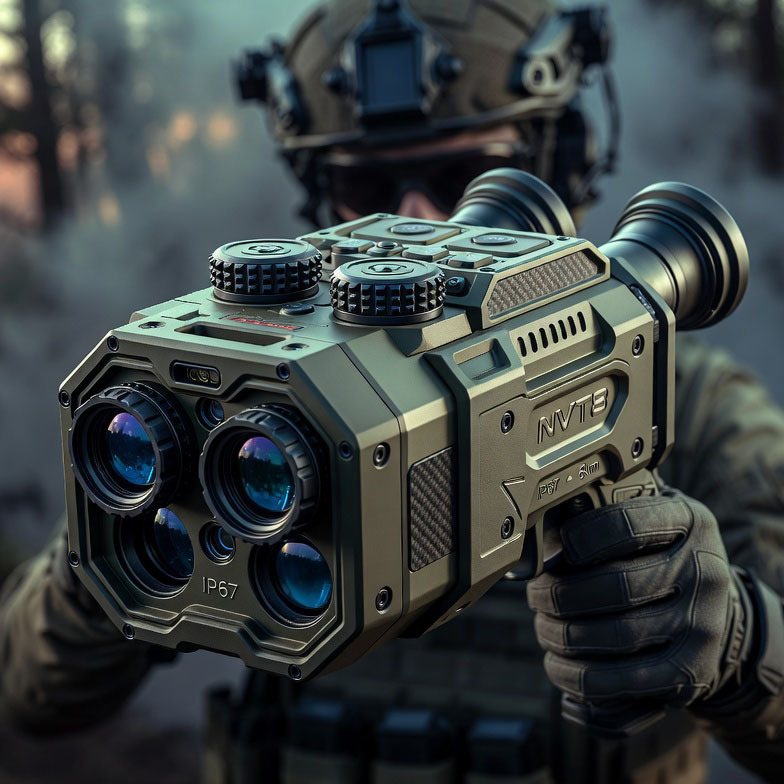

NVT8 Multi-Function Target Detection System

No.

Product

Why NVT8 Matters to You

1

True Day & Night Operational Capability

Maintain situational awareness in any environment:

• EO sensor: Vehicle recognition ≥ 6 km
• Thermal imaging: Human detection ≥ 1 km
• Dual-spectrum fusion for enhanced target clarity

2

High-Precision Target Location

Turn observation into actionable coordinates:

• Self-positioning accuracy: ±10 m
• Target positioning accuracy: ±20 m
• Multi-constellation GNSS (BDS / GPS / GLONASS)
• Automatic magnetic declination correction
• Multiple coordinate systems (WGS84 / UTM / MGRS)

3

Long-Range, High-Accuracy Laser Ranging

• Wavelength: 1535 nm
• Range capability:
• Vehicles ≥ 6 km
• Large structures ≥ 8 km
• Accuracy: ±1 m

4

Faster Decision-Making in the Field

• Startup time ≤ 30 seconds
• Voice control for key functions
• Guided UI for intuitive operation

5

Integrated Environmental Awareness

Built-in sensors measure:

• Temperature
• Humidity
• Atmospheric pressure
• Supports ballistic computation (up to 267 profiles) with wind correction.

6

Rugged & Field-Proven Design

• Operating temperature: -40°C to +60°C
• Protection rating: IP67
• Weight: approx. 2.1 kg (with battery)
• Continuous operation: ≥ 9 hours

7

Remote Targeting with Fiber-Optic North-Seeking Gimbal (Optional)

For covert and protected operations, we offer an optional visualized gimbal system with integrated Fiber-Optic Gyro (FOG) north-seeking capability, enabling fully remote target acquisition and positioning.

8

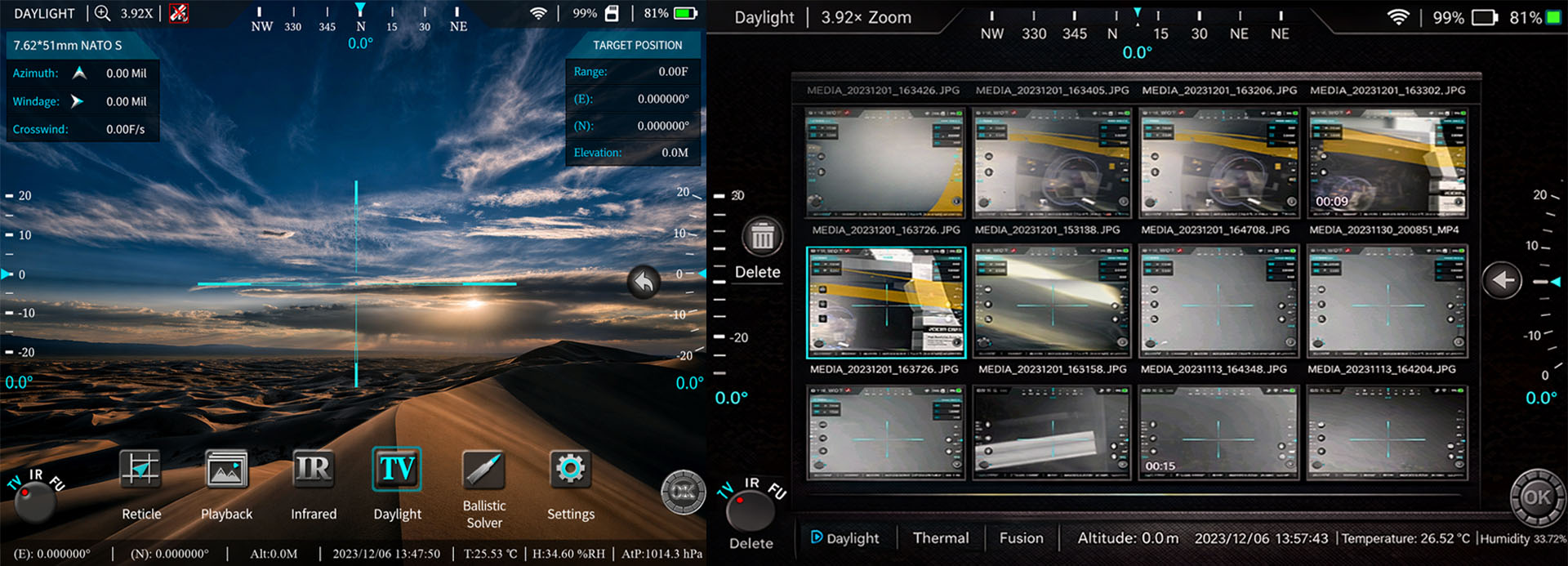

Display & Recording

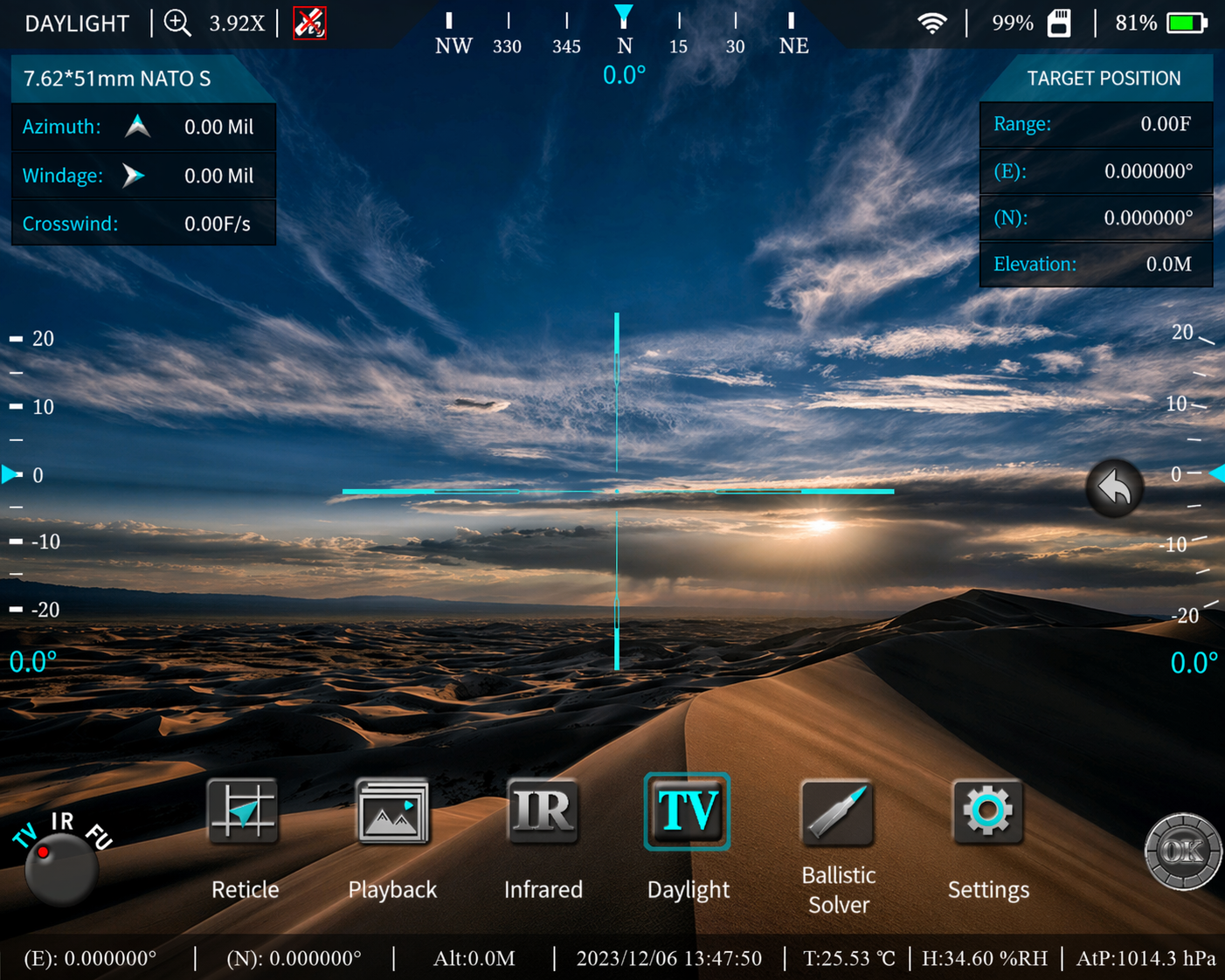

• 1080p Full HD OLED display
• Multiple viewing modes (EO / Thermal / Ranging)
• Image & video recording capability

9

Connectivity & System Integration

Designed as a node in modern tactical systems:

• Interfaces: USB / HDMI / DC / PAL
• External system integration support
• Multi-function expansion interface

No.

Conventional Setup

NVT8

1

Multiple devices required

All-in-one system

2

Complex operation

Intuitive interface

3

Fragmented data

Unified output

4

Limited environmental adaptability

Extreme condition ready

5

Manual calculations

Automated processing

No.

User Requirements

Applications

1

Tactical Reconnaissance & Surveillance

Long-range day/night detection for continuous situational awareness.

2

Target Acquisition & Geo-Location

Accurate coordinate generation for fast and reliable targeting.

3

Border Security & Area Monitoring

Wide-area surveillance with reduced manpower requirements.

4

Environmental Mapping & Field Data Collection

Precise terrain and coordinate measurement in complex environments.

5

Remote & Covert Operations (FOG Gimbal)

Stand-off operation with no manual alignment, even in denied environments.
