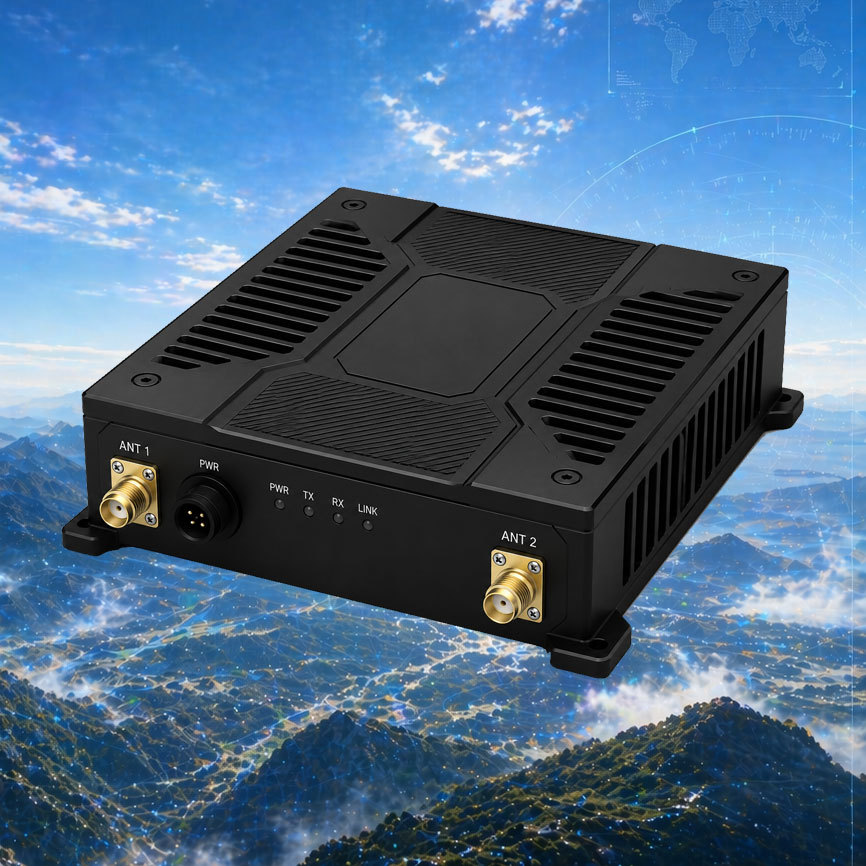

50km-class Mesh Dual-Band Datalink S905MD

Feature

Description

Adaptive Frequency Hopping (Anti-Jamming)

Real-time dynamic frequency switching to avoid interference and maintain stable communication in complex RF environments

Dual-Band Concurrent Communication

Two independent RF links operate simultaneously, separating control/telemetry and video/payload data

Dual-Band Redundancy

Ensures link continuity when one frequency band is degraded or jammed

Long-Range Transmission (150 km)

Supports long-distance UAV operations with reliable LOS communication

High Data Throughput

Up to 40 Mbps (optional 80 Mbps) for HD video and mission data transmission

SDR-Based Flexibility

Software-defined architecture allows customizable frequency combinations and mission adaptation

High Power RF Output

Adjustable 0–29 dBm output power for different deployment scenarios

Category

Specification

Model

S905MD

Frequency Bands

800 MHz / 900 MHz +1.7 GHz / 2.4 GHz (customizable)

Dual-Band Mode

Concurrent operation

Transmission Distance

Up to 50 km (LOS, MESH)

Throughput

Up to 40 Mbps (80 Mbps optional)

Modulation

COFDM / QPSK / 16QAM / 64QAM

Transmission Power

0–29 dBm

Latency

< 30 ms

Interfaces

RJ45 ×2, RS232 ×1, TTL ×1, SBUS ×1 (configurable)

Dimensions

150 × 150 × 29.7 mm

Weight

~480 g

Operating Temperature

-20°C to +65°C
