HG260-F/FG OMCI GPON ONU, support Huawei/ZTE/ALU/Fiberhome OLT

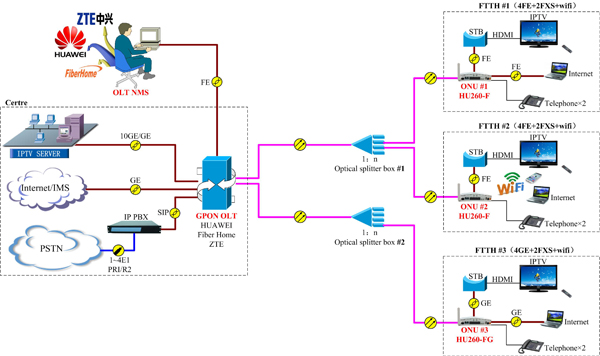

HG260 Series family gateway is special design for matching SoHo bandwidth access, FTTX bandwidth increasing, FTTX/FTTO requirement. This ONU is base on mature and high cost-effective Gigabit GPON/EPON technology. It also embed wireless 802.11n(2T2R), L2/3 Ethernet exchanging and high quality of VoIP technology. The unit is ensure of high reliability, easy management and QoS. It can max match to IEEE802.3ah OAM standard, support TR069 and OMCI protocol. The unit can docking with big brand OLT such as Huawei/ZTE/Fiberhome/Alu and so on.

Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.

Support rich QinQ VLAN, DHCP Server/Relay and IGMP/MLD snooping multicast feature.

Support fiber transceiver diagnostic monitoring, fiber transmitter disable remotely.

Fully compatibility with each famous brand OLT based on Broadcom chipset etc.  It already able to docking with Huawei/ZTE/Fiberhome/ALU and so on.

Support NAT, Firewall function.

Support IPv4 and IPv6 dual stack.

Integrated line testing compliant with GR-909 on POTS.

The WAN port supports bridge, router and bridge/router mixed mode

Technical items

Description

HG260-F

HG260-FG

Chipsets

BCM68380F

Optical interface

1 GPON interface, SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps

Wavelength

EPON Tx 1310nm, EPON Rx 1490nm

Optical interface

SC/PC connector

RX sensitivity

< -25dBm @ 1490nm

WLAN

Compliant with IEEE802.11b/g/n, 300Mbps,
2T2R One internal antenna and one external antenna

WLAN throughput

100Mbps @ 40users, 1518bytes, no-encryption
107Mbps @ 40users, 512bytes, encryption

LAN interface

4x 10/100Mbps auto adaptive Ethernet interfaces,RJ45 connectors

4x 10/100/1000Mbps auto adaptive Ethernet interfaces,RJ45 connectors

Downstream POTS interface

2 FXS, RJ11 connectors

Indicators

14 indicators, for status of power supply, PON, LAN and POTS .

DC power supply

+12V, external AC-DC power adaptor

Power consumption

≤10W

Operating condition

Operating temp: -5~+55
Operating humidity:10~90%(non-condensed)

Storing condition

Storing temp: -30~+60
Storing humidity:10~90%(non-condensed)

Dimension

205mm*50mm*138mmW*H*D

Net weight

0.4Kg

Data Service Functions

Full speed non-blocking switching.

2K MAC address table.

64 full range VLAN ID.

Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.

Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

Support auto polarity detection of Ethernet ports (AUTO MDIX).

Integrated IEEE802.1p QoS with four level priority queues.

Support IPv4 IGMP snooping and IPv6 MLD snooping.

Support bridge, router and bridge/router mixed mode.

POTS Service Functions

Call protocol: SIP(IMS compatible)/H.248(Megaco)/MGCP optional, seamless compatible with all popular call agent.

Integrate heartbeat function and support active/standby call agent.

Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.

Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.

Support high/low speed fax, bypass fax, and T38 fax.

Support high speed MODEM(56Kbps) dial access.

Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.

Multi-party conferencing.

Line testing according to GR-909.

IP address assignment: dynamic PPPoE/DHCP Client and static IP.

Support WEB, CLI,IVR,TR069.

Call loss less than 0.01%.

WIFI Service Functions

Integrated 802.11b/g/n, 300Mbps, 2T2R.

Support 128 connections.

Support WEP and WPA/WPA2 security protocols.

RF OUTPUT

-8 to 0 dBma
