AN5506-04-B 4ETH+2 POTS GPON SFUAN5506-04-GG/CG 4GE+2POTS+CATV+WIFI GPON SFU

AN5506-04-FG, 4GE+2POTS+WIFI GPON SFU

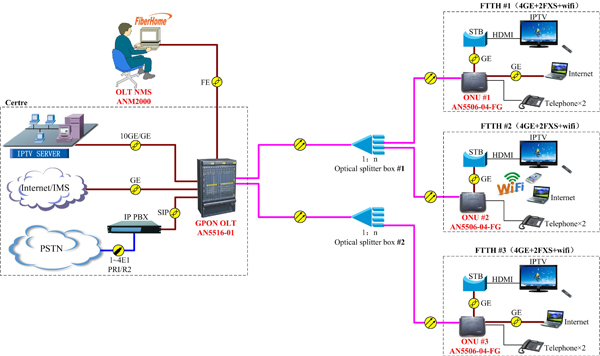

AN5506-04-FG is one of remote ONU in Fiberhome FTTX system. It can provide 1 port of GPON uplink to docking with OLT in local. And also provide 4 ports of 10/100M Base-TX, 2 ports of RJ11 and Wi-Fi. AN5506-04-FG must connect to AN5x16 Series OLT in GPON system. The entire system can provide data,VoIP and video for subscribers.

Provide Ethernet/Wi-Fi/USB/VoIP interface to match different access request from users.

Build in Wi-Fi function, comply to 802.11b/g/n.

High Service discovers and control function. It can indentify different kind f service base on equipment and provide prior control to end user.

4 LAN(10/100/1000M BASE-TX) port, Wi-Fi and 2 RJ11 ports, support max 4 SSID(hide),Support WEP and WPA/WPA2 security protocols.

Support PPPoE+;STP/RSTP

Support IEEE802.1Q VLAN; QoS

Support IGMP Snooping, IGMP Proxy

Call protocol: SIP (IMS compatible), seamless compatible with all popular call agent

Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.

Physical Dimension :45×235×190MM (H×L×D)

Power: DC 12V with AC 220V adapter

Power Consumption: lower than 5W

Working Temperature: -1055

Storage Temperature: -3060

Relative Humidity: 1090% (Non Condensation)

Weight: 850g.
