AN5506-04-B 4ETH+2 POTS GPON SFU

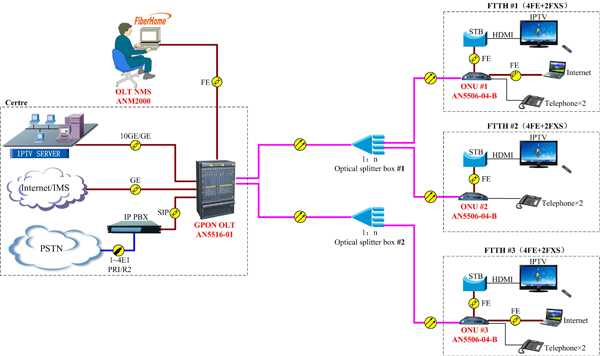

AN5506-04-B is one of remote ONU in Fiberhome FTTX system. It can provide 1 port of GPON uplink to docking with OLT in local. And also provide 4 ports of 10/100M Base-TX and 2 ports of RJ11. AN5506-04-B must connect to AN5x16 Series OLT in GPON system. The entire system can provide data,VoIP  and video for subscribers.

● Support Ethernet port auto negotiation on bit rate, MDI/MDIX, half/full duplex and Pause flow control

● High speed High Quality

● 4 LAN port and 2 Phone ports

● Support PPPoE+;STP/RSTP

● Support IEEE802.1Q VLAN; QoS

● Support IGMP Snooping, IGMP Proxy, IGMP V1/V2/V3

● Support H.248,SIP

● Physical Dimension :210×149×32.5MM (H×L×D)

● Power: DC 12V with AC 220V adapter

● Power Consumption:〈5W

● Working Temperature: -10～55℃

● Storage Temperature: -30～60℃

● Relative Humidity: 10～90% (Non Condensation)

● Weight: 650g
