AN5116-06B OLT 128 PON port GPON,10G EPON Subrack

FTTx(Fiber to the Node) solution helps operators provide broader bandwidth and more service for customers. By deploying FTTx, access network is no more bottle-neck and triple play may be realized by integrating from several different networks.

A saving and reliable way of deploying FTTx is appling PON(Passive Optical Network) technology which has the features of P2MP(Point to Multiple Point) topology.

AN5116-06B GPON/EPON OLT platform produced by Fiberhome is one of the advanced FTTx OLT equipment. It is a large capacity carrier class GPON/EPON equipment which provide up to 4096 ONU users at the 1:64 split Ratio. An5116-06B can be configured to compatible GPON/EPON OLT platform. GPON and EPON users can be concurrently supported in the same OLT subrack by using different ONUs.

AN5116-06B Helps operator avoid risk at the initial phase in deploying FTTx.

*. Global Availability & Compliance

Targeting global central- office environments, the system comply with the latest international ITU-T G.984 & IEEE 802.3ah Standards and Related Recommendations.

*. Flexible Configuration

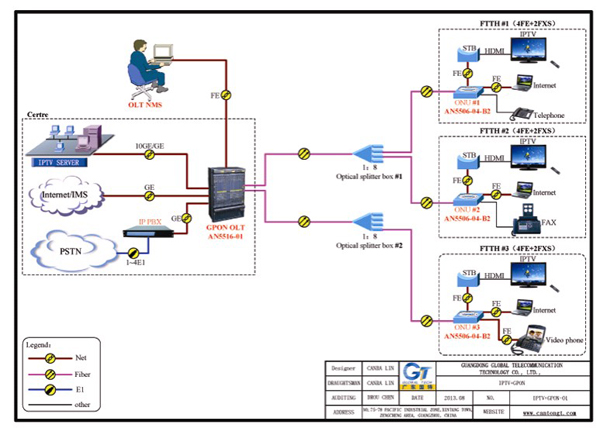

By deploying different types of ONU, AN5116-06B support flexible FTTH/FTTB/FTTC deployments solution to satisfy different requirements. Both TDM triple play and IP triple play are supported.

*. Compatible GPON/EPON platform

By configuring different types of cards, GPON and EPON users can be concurrently supported in the same OLT subrack by using different ONUs. Users won’t feel the difference of different technologies used.

*. Carrier-class reliability

It is designed for carrier-class reliability, with an inimitable double-fabric structure. The key components can be configured for 1+1 redundancy, AN5116-06B also supports uplink cards and power input for redundancy.

*. Integrated EMS/NMS platform

All the FTTx equipments covering GPON/EPON/NG PON can be managed in single ANM2000 platform and provide various NBI with NMS.

*. Advanced Function & big capacity

10G Backplane with non traffic block.

Support max 4*10GE/12*GE uplink.

Support max 4096 ONU user per subrack.

Dimensions(WxDxH mm) : 480 X 270 X 621.5

Chassis Weight(Fully Loaded) : 40KG(Full Loaded).

Capacity(Per Subrack): Support Max 4096 ONU Users

Capacity(Per Service Card): 8 PON port per EPON/GPON Service card

4 PON Port per EPON/GPON service card.

Core switch capacity: 1000Gbps.

Environment Requirement: Operating Temperature: -10C up to 50C.

Storage temperature: -30c up to 65c

Ambient humidity: 5% up to 95%.

Service: Ethernet service.

CATV service.

NGN Voice(MGCP/H.248/SIP)

TDM service

Broadcast services for IPTV

VOD unicast

Uplink interface: 10GE optical uplink with XFP

GE optical uplink with SFP

GE Electrical uplink

E1 uplink

STM1 uplink

PON Port Interface: GPON port complying with Class B+/C for ODN

EPON 1000 Base-PX10/PX20 port for ODN

Up to 20km max reach

SC/PC Connector

Support G.652/G.657 Single Core Fiber

Wavelength: TX 1310nm/ RX 1490nm(1550NM)

Optical Line Rate: Upstream/Downstream data rate: 1.244G/2.488G for GPON

Upstream/Downstream data rate: 1.25G/21.25G for EPON

Power Consumption (full configured): 850W(Full loaded)

Power Supply: -48V DC(40V up to 57V)
