Global Tech GT- GJS Series optical splice closure is suitable for protecting fiber cable splices in straight-through and branching applications. The case body is made from high-intensity engineering plastics and formed the shape, therefore effectively prevent products from aging caused by coldness, heat, oxygen and ultraviolet radiation. The strong housing and main components provide fire resistant, waterproof, and quakeproof while protecting splices during pulling, compressing, and impacting, bending, tensioning, axial tensioning.
It ensures long-term reliability and usage under ambient temperature from -40℃ to +75℃. Splice tray with optical fiber radius of curvature≥40mm.GT-GJS Series include horizontal and vertical (cap-type), with max Capacity 576 cores. These products can be used in aerial, duct and direct buried fiber optic cable projects.
l Easy reentry and re-closure
l Compatible with most cable construction (loose tube, central core, and slotted core)
l Fast and easy installation
l A good mechanical property and resistance to weathering, firm and wearable
l Splice tray with optical fiber radius of curvature≥40mm
l Low optical loss
l The case body is made from high-intensity engineering plastics and formed the shape with mold plastics under high pressures
l High mechanical intensity, corrosive-resistance, anti-thunderstruck and long service life
l Outer metal component and fixing unit are made of stainless steel, so it can be repeatedly used in different.
l JFxxMaterial of enclosure: PP/PC/ABS
l Applicable cable Dia.: 5~30 mm
l Port: 2/4 inlets and 2/4/6 outlets
l Fibers Tray: 12 or 24
l Max Capacity: 576 cores
l Sealing method: mechanical + Heat-shrinkable/ Adhesive
l Reusing: Yes (no need special tools)

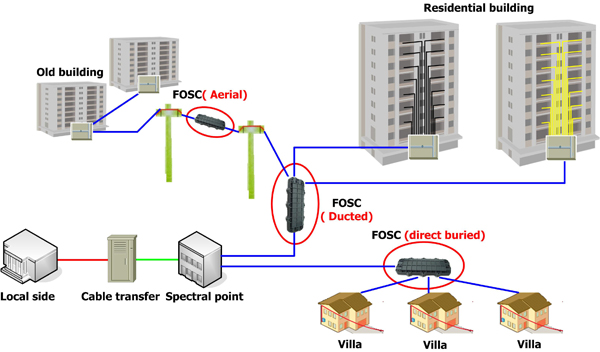

l Applicable environment: aerial, ducted, direct buried
l Bracket Frame: Clod steel
l Working temperature: -40 ~ +60 degree centigrade
l Atmospheric pressure: 70 ~ 106kPa
l Axial Tension: >1000N/1 min
l Stretching resistance: 2,500N/10 square centimeter (1min)
l Insulation resistance: >2 x 104MΩ
l Voltage strength: 15KV/1min, no arc over or breakdown
l Pressure in the Water: 10m 72 hours
l Life and Duration: 25 years
