Optical Fiber Terminal Box

Global Tech GT-GP series  fiber terminal box is used to connect the fiber in the house and it can be hanged on the wall or fixed on the floor. the body is made of steel plate with rot-resistant coating. For meeting the new development of communication network, the products considered to be new small distribution cabinets, it is applied for remote module offices, BTS, etc. DDF, ODF modules are integrated in the same equipment, so the original functions are   realized and do save space and be easy to manage.

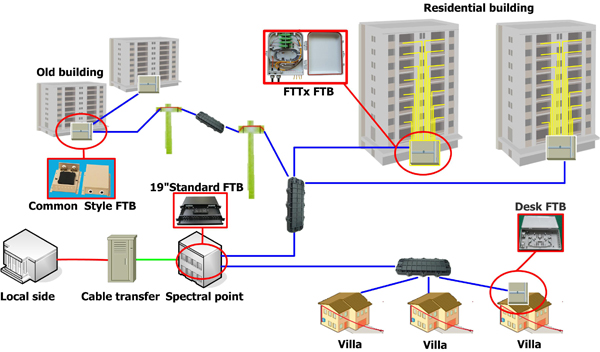

l Product types : FTTx Terminal，19"Standard  Terminal ，Common  Style Terminal（Adapter or no）
l Maximum capacity up to 96 cores
l The case adopts static blasting painting treatment
l With fixed device of optic cable lead-in and wiring fiber pigtail lead-out
l Built-in Fusion Splice Protector can be superimposed and has flexible configuration
l Adapter applicable FC,SC,ST Specifications
l Low optical loss ，insertion loss <0.2dB
l Mounted against wall to save space
l Patch cords management is clear and neat
l Enough optic fiber storing space, curvature ratio of fibers is very well guaranteed
l Reliable ground protection

l Material of enclosure: PP/PC/ABS or Sheet Metal
l Applicable cable Dia.: 5~30 mm
l Port: 2~6 inlets and  0~96 outlets
l Fibers Tray: 12 or 24
l Applicable environment: wall, desk, 19"Standard
l Working temperature: -25 ~ +40 degree centigrade
l Relative humidity: ≤85％(+30℃)
l Atmospheric pressure: 70 ~ 106kPa
l Axial Tension: >1000N/1 min
l Stretching resistance: 2,500N/10 square centimeter (1min)
l Insulation resistance: >2 x 104MΩ（ 500VDC）
l Voltage strength: 15KV/1min, no arc over or breakdown
l Pressure in the Water: 10m 72 hours
l Life and Duration: 25 years
