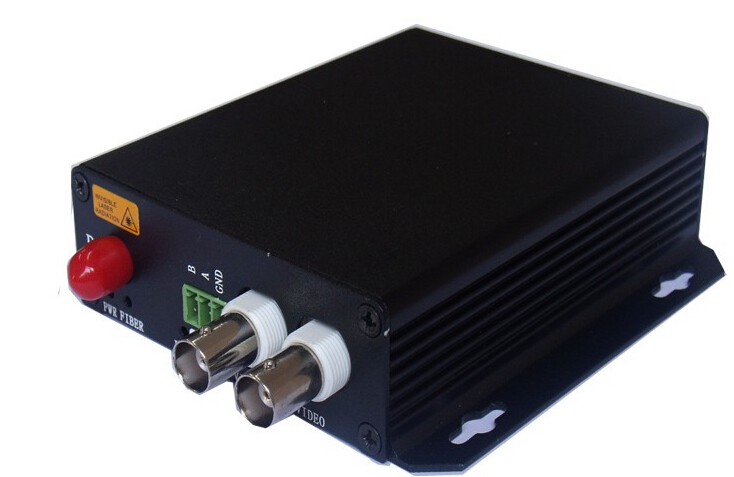

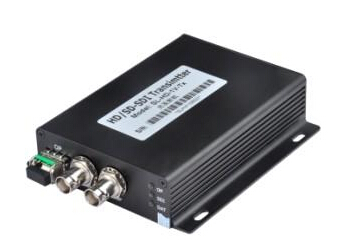

SDI Optical Video Terminal

Global Tech GT-VO-5 series SDI Video Optical Terminal is designed and produced for the CATV industry as a high reliability, high performance serial digital optical transmission equipment, and supports signal formats from 19.4Mbps to 1.485Gbps. The system supports SMPTE259M, SMPTE297M, SMPTE305M, SMPTE310M, DVB-ASI (EN50083-9) and other digital television standard. GT-VO-5 can fulfill all types of the requirements from the industry level applications.

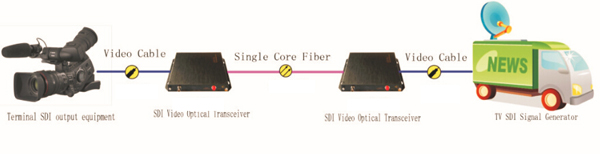

l Transport the bi-directional SDI digital TV signal over one fiber.

l The output optical wavelength supports 1310nm, 1550nm and the 16 CWDM wavelengths, ITU-T G.694.2 Compatible.

l Power and other parameters LED can monitor system status, and optional Network Management System.

l Support hot-swapping.

l Support 4U chassis, 1U chassis and standalone architecture.

l Serial TV BNC Input
n SD TV Signal: SMPTE 259M A, B, C, D, SMPTE 297M, SMPTE 305M, SMPTE 310M, SMPTE 344M、M2S& DVB-ASI
Equalization: 0-300m @ 270Mbps
n HD TV Signal: SMPTE 292M, 259M, 297M, 305M, 310M, M2S, DVB-ASI, DVB-SSI and other rate signals, 19.4Mbps- 1.485Gbps
Equalization: 0-150m @1.485Gbps
n Emission Loss: >15DB
n Connector: 75Ω, BNC

l Optical Interface
n Fiber Type: single mode, multi-mode optional
n Working Wavelength: 1310nm, 1550nm
 Tx Power: -5~ -10dBm, 0~ -5dBm for 60km
 Rx Sensitivity: -26dBm, -30dBm for 60km
n Working Wavelength: 1310nm, 1550nm and 16 CWDM wavelengths, from ITU-T G.694.2
n Jitter: < 0.2UI
n Connector: FC/PC, SC/PC

l Serial TV BNC Output
n Signal Level: 800mV Nominal
n Rise/ Fall Time: 900ps Nominal
n Overshoot: < 10% Amplitude
n Reflection Loss: > 15dB
n Jitter: < 0.2UI
n Connector: 75Ω BNC

l Operation Environment
n Working Temperature: 0°C~ 50°C
n Storage Temperature: -40°C~ 75°C
n Relative Humidity: 5%~ 95%, non-condensing
 No corrosive and solvent gas, no dust and heavy EMI
 EMI/ RFI comply with FCC Part 15 Class A, EU EMC
n MTBF: > 100,000 hours
n Power Supply: DC 12V
n Power Consumption: 12W
n Physical Dimension:
Central Office Chassis:
438mm(W)* 45mm(H)* 270mm(D)
CPE Standalone:
260mm(W)* 25mm(H)* 205mm(D)
