Node Video Optical Terminal

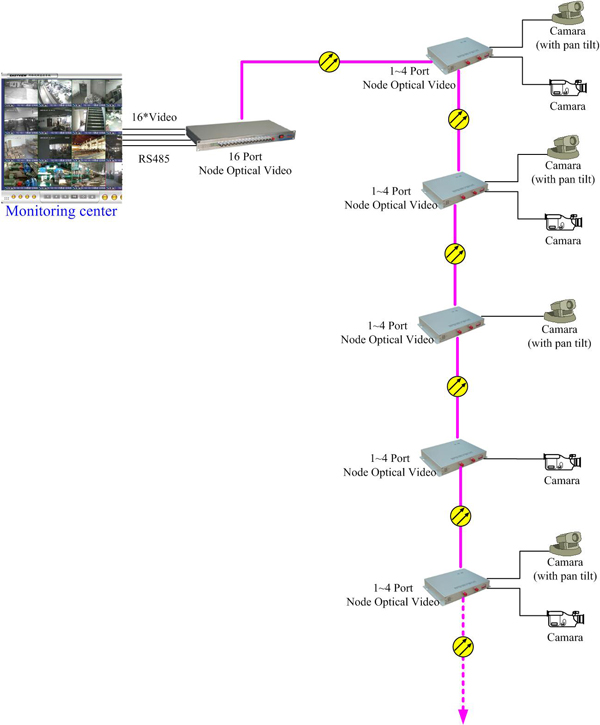

Global Tech GT-VO-2 series Node Optical Video Terminal integrates digital non-compressed video signal process, TDM and WDM technologies. Over only one fiber, GT-VO-2 can construct multi-node chain network and transport up to 16 channel digital non-compressed video signals simultaneously. GT-VO-2 consists of 2 types of NE: Remote CPE and Central Office. Remote CPE is designed as desktop standalone or chassis architecture, and Central Office type is standard 1U chassis design. Central Office product can provide 8/10 route video output, 2 route 10M/100M Ethernet with Layer-2 switch, 1/2 route shared data and 16 route point-to-point audio/data/switch signal optionally. Remote CPE device can provide 1~5 route video input, 2 route 10M/100M Ethernet interface with L2 switch, 1/2 route shared data and 5 route point-to-point audio/data/switch signal optionally.

l 8/10 channel digital non-compressed real-time video transmission.

l Line protection function: During Power Failure or NE Failure, Optical Line Protection function is automatically activated to ensure the link transmission next to the failed NE and enhance the system security and reliability.

l Remote CPE supports real-time software configuration。

l Maximum single span distance is up to 80km. And each node has a regeneration function, extending the whole link to the distance 800km maximum.

l Through Network Management System GUI and the whole network topology, configuration, fault and log management, increase the efficiency in deployment, maintenance and management for the end user.

l All series of products pass the Ministry of Public Security Type Test and get the Network Access License from the Ministry of Industry and Information Technology.

l Optical Interface
n Working Wavelength: 1310nm, 1510nm, CWDM
 Tx Power: 0dBm~ -5dBm
-8dBm~ -15dBm
 Rx Sensitivity: -24dBm/ -27dBm, APD

l Video Interface
n Video Channels:
Remote CPE: 1~ 5 channel input，
Central Office: 8/10 channel output
n Sampling Frequency: 16MHz
n Sampling Coding: 8bit/ 10bit
n Video Pattern: PAL, NTSC, SECAM auto-adapted
n In/Output Impedance: 75Ω
n In/output Voltage: 1Vp-p
n In Overload Voltage: 1.5Vp-p
n Insertion Gain: 1+5%
n Input Bandwidth: 5Hz~8MHz
n Differential Gain: ≤1%
n Differential Phase: ≤1°
n SNR: ≥67dB, Weighted
n Connector Type: BNC

l Data  Interface
n Data Format: Bi-direction Data RS232/422/485, optional
n Baud Rate: 0~ 115.2Kbps
n Total Sampling Rate: 2MHz
n Error Rate: <10e-9
n Connector Type: PHOENIX

l Ethernet  Interface
n 10M/ 100M auto negotiation
n Connector: RJ45

l Operation Environment
n Working Temperature: 0°C~ 50°C
n Storage Temperature: -40°C~ 75°C
n Relative Humidity: 95%, non-condensing
 No corrosive and solvent gas, no dust and heavy EMI
 EMC: Comply with GJB151A-97, IEC61000-4-2/3/4/5/11
n Power Supply:
Central Office: AC 220V
CPE: DC 5V
 Typical Consumption:
Central Office: ≤ 20W
CPE: ≤ 8W
 Physical Dimension:
Central Office Chassis:
482mm(W)* 44mm(H)* 292mm(D)
CPE Standalone:
210mm(W)* 36mm(H)* 135mm(D)
