Global Tech PMUX-M series multi service PDH has adopted the state-of-the-art technologies and advanced FPGA to provide 1E1/4E1/8E1/16E1 multiplexing and optical electrical regeneration. With plug and play modularized design, GP6 can support all kinds of customized service requirement such as Ethernet and V.35.
l Provide sophisticated SNMP management system, local and remote alarm can display simultaneously.
l Support alarm summary record function to ensure the reliability of transmission.
l Provide single E1 channel or whole tributary card E1 channel loop back function, remote and local loop back, with convenience for maintenance and deployment.
l Auto Fault Shifting function, can locate the fault timely because of no output on E1 port during optical port failure.
l Adopt very large scale ASIC, low power consumption and high reliability.
l Comply with ITU-T G.703 and G.823.
l Support local Console management.

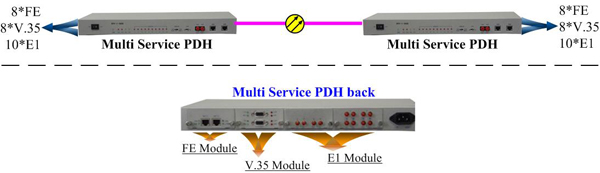

l Support Multi service(E1,V.35 and Ethernet) transmission
l Optical Interface
n Wavelength: 1310nm, 1550nm
n Tx Power: ≥ -10dBm
n Rx Sensitivity: ≤ -35dBm
n Rx Range: > 27dB
n Connector: FC, SC
l Ethernet Interface
n Work Mode: Full/half duplex, auto negotiation
n Bit Rate: Support max. 100M wired line Ethernet
n Connector: RJ45
n Related Standard: IEEE802.3
n MDI/ MDIX auto negotiation.
l E1 Interface
n Bit Rate: 2.048M bps
n Coding: HDB3
n Impedance: 75Ω,120Ω
n Related Standard: ITU-T G.703, G.821, G.82
l V.35 Interface
n Connector: DB25
n Max. Rate: 2M bps
n Bit Rate: N* 64K, N=1~ 32
n Related Standard: Comply with ITU-T V.35
n Data Port Connection Mode：DCE
l Operation Environment
n Working Temperature: -10℃~ 60℃
n Storage Temperature: -40℃~ 85℃
n Relative Humidity: 0%~95%, non-condensing
n No corrosive and solvent gas, no dust and heavy EMI
n Power Supply: AC 220V, DC -48V
