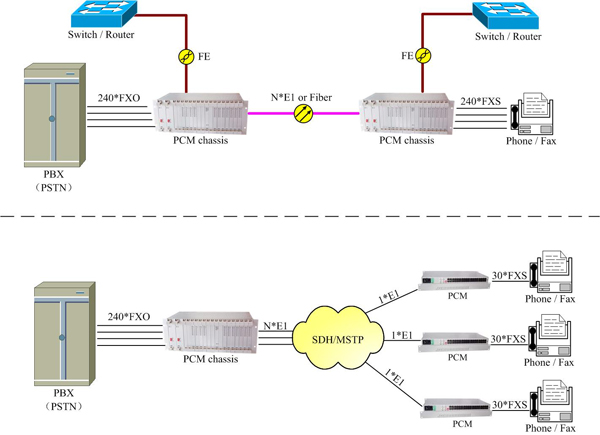

Multi Service PCM/POT Fiber Multiplexer  Global Tech PCM Fiber Mux GT-PCM-OP series product can transport long distance telephone signal on fiber cable. GT-PCM-OP can transport multi ports of voice, V.35, Serial(RS422/485/232), E1 and FE to fulfill client service requirement. And GT-PCM-OP adopts powerful digital multiplexing chipset and integrates various kinds of digital logic function at a very economic and competitive cost. The equipment have various kinds of advantages such as high performance, reliable and stable, strong management function, low power consumption, high density and easy maintenance. It have widely deployed by telecom operators, governments and other key accounts. l Based on self-owned intellectual property rights, 1U 19” standard rack-mounted equipment. l Provide Voice, V.35, Serial(RS422/485/232), E1 and 10M/100M Ethernet ports. l Support caller ID display and reversed polarity counting function at voice port. l Configure V.35 port bit rate from 64k up to 2048K at the step 64K. l E1 ports provide balanced and unbalanced. l With full/half duplex auto negotiation, Ethernet 10M/100M port support VLAN. l Provide SNMP based NMS and AC/DC power supply. l Optical Interface n Working Wavelength: 850nm, 1310nm, 1550nm n Connector Type: SC, FC n Tx Power: -9/ -12dBm n Rx Sensitivity: ≤ -36dBm n Rx Range: ≤ 27dB n Transmission Distance n Multi Mode Fiber: 5Km n Single Mode Fiber: 20/60/120Km n Jitter: Comply with G.742 and G.832
l Ethernet Interface n 10M/ 100M auto negotiation n Full/half duplex auto negotiation n Related Standard: IEE802.3, IEE802.1Q(VLAN) n Connector: RJ45 n MDI/ MDIX auto negotiation n MAC Address Table: Up to 4096
l E1 Interface n Bit Rate: 2.048M bps ±50ppm n Coding: HDB3 n Timeslot Control: PCM30, PCM31 n Impedance: 120Ω(Balanced) / 75Ω(Unbalanced) n Port Feature: G.703 n Jitter: Comply with G.742 and G.832
l FXO/S Interface n FXO Ring Volt: 35V n FXO Ring Frequency: 17~ 60Hz n FXS Ring Volt: 70V n FXS Ring Frequency: 25Hz n EM Input Impedance: 600Ω n Return Loss: 40dB
l V.35 Interface n Bit Rate: N* 64K bps, N=1~ 32 n Related Standard: ITU-T V.35 n Terminal Interface: ISO2593
l Operation Environment n Working Temperature: -10℃~ 60℃ n Storage Temperature: -40℃~ 85℃ n Relative Humidity: 0%~ 95%, non-condensing n No corrosive and solvent gas, no dust and heavy EMI n Power Supply: AC 220V, DC -48V n Power Consumption: ≤ 5W /Card n Max. Power Consumption: ≤ 100W n Physical Dimension: 442mm(W)* 44mm(H)* 265mm(D)
|
