Fiber Patch Cord

Global Tech are also providing low cost high quality fiber path cord to customer for turnkey project. These kinds of products are come from our veritified partner which we done strict testing test(Optical performance, vibration test,thermal cycling,impact resistance, salt spray erosion,thermal aging,humidity resistance and others) and deploy in many place. Their quality are already prooved and appreciated by many customers.

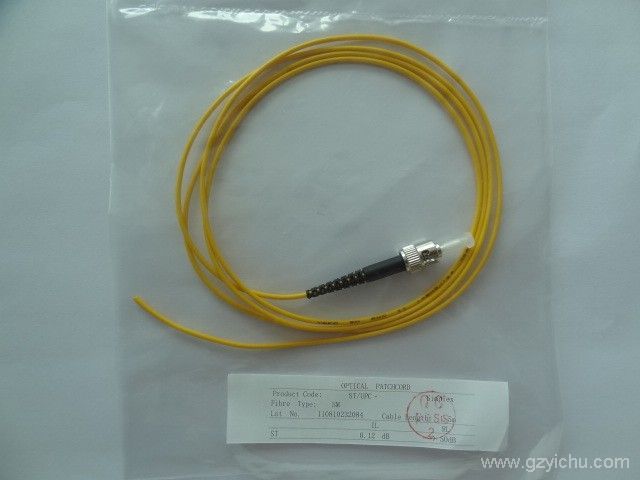

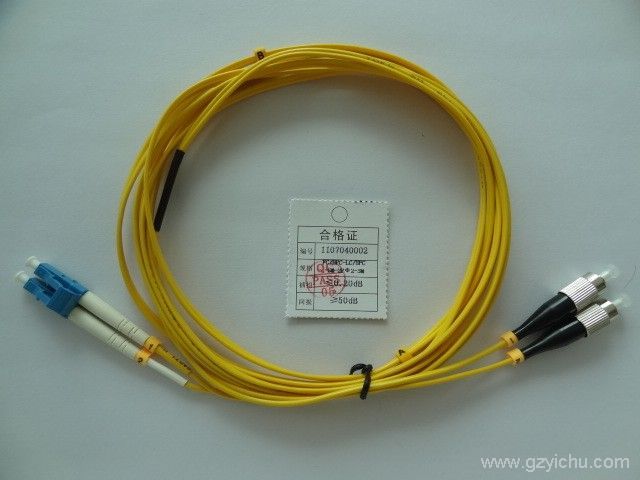

Fiber path cord have following 10 kinds of series which sorted by connector, FC-FC,SC-SC,LC-LC,ST-ST,FC-SC,FC-LC, SC-LC,ST-FC,ST-SC and ST-LC. These series have single mode(yellow in color) and multi mode(Orange in color). It also have sinplex and duplex. The length including 1M,2M,3M,5M,10M,15M and 20M. The whole series comply to IEC standards, GR-326-CORE.

Ø Inner covering Dia: 125μm, Dia: 50/62.5μm(Multi Mode), 9μm(Single Mode)

Ø Impact Resistance: 15Kg

Ø Fiber outer Dia: 3mm/2mm, Minimum bend radius：10×path cord dia；

Ø Working Temperature：- 40℃ --- +75℃, Storage Temperature :- 50℃ --- +85℃;

Ø Low insert loss, excellent repeat plug performance, easy installation and stable.
