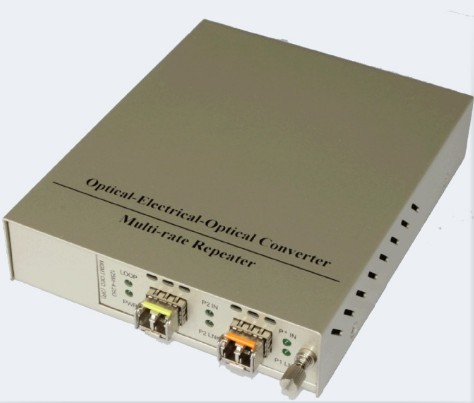

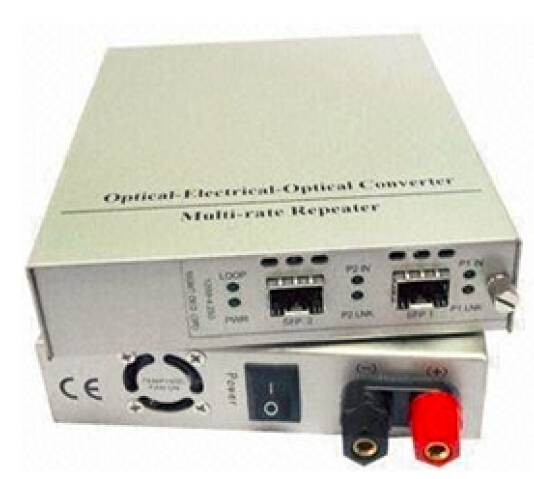

10G OEO wavelength converter and signal repeater GT-OEO Series

n GT-OEO series products are high-performance 10G optical signals Repeaters, realize the optical signal equilibrium amplification, clock extraction and plastic regeneration, extended optical signal transmission distance greatly.

n Using Optical - Electrical - Optical wavelength conversion and WDM (DWDM/CWDM) technology, cooperate WDM device can achieve optical signals transmit in a single fiber by single or multiple way over a long distance.

n Connection between fiber to fiber 10Gbps Ethernet equipment function as fiber mode converter ,or as fiber repeater for long distance transmission.

n Media converter for network backbone(SAN, LAN, MAN).

n Can be applied in Telecommunication room, R&D laboratory, Data center, and etc.

n 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.

n Support 2U Rack (16 channel) and independent use

n Support network management

n Support a WEB form and simple network management protocol SNMP mode. A WEB management can let user to allows monitor and manage the card status easily; Support SNMP unified network management platform

n support ITUT prescribed DWDM/CWDM wavelength

n transmission rate:9.95 Gb/s - 11.35 Gb/s

n Transparent Transport for data, less delay

n SFP module (Diagnostic Monitoring with), can detect light power change

n support Loopback test function

n support hot plugging

n state indicator light is complete

n Easy installation

n 3R function (balanced amplification, Timing Clock Obtaining , Shapping and regeneration), good dispersion management function, data transmission rippon at low.

SDH/SONET STM-64/OC-192，10G fiber channel，10G Ethernet, 10G CWDM/DWDM

Ordering Information
