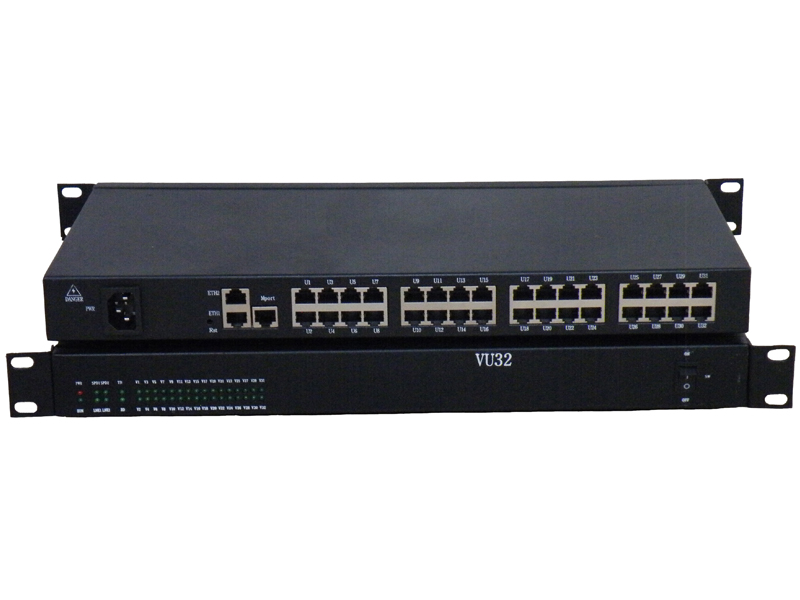

32 Ports Serial RS232/422/485 to Ethernet Server/Com Driver

Global Tech VU32 Series Serial Port Server can interconnect the conventional RS232/ RS422/ RS485 serial equipment to Ethernet.  The essence of VU Series Serial Server is micro computer, consisting of specialized CPU and TCP/IP-enabled Linux Operation System, together with powerful networking capabilities and high efficiency to process the serial interface and network data.

Based on TCP/IP protocol, the serial equipment are accessible via VU Serial Port Server without any hardware restriction, such as bus, slot and port. Via VU Serial Port Server, the serial equipment can interconnect with Ethernet for network extension.

Global Tech VU32 Series supports flexible and varied serial equipment access methods, including not only Standard Win Socket and BSD Socket, as TCP Server, TCP Client and UDP, but Virtual Serial Port. All legacy serial equipment can be deployed without any surplus software modification and investment. Via VU Series Serial Server, one serial equipment is accessible simultaneously via several TCP Clients and Virtual Serial Ports, which brings a hardware resource saving and software development convenience.

VU32 Series have included VU32-D and VU32. VU32-D is support dual WAN uplink back up. Each WAN have individual IP and MAC address. So that it can match for end user back up purpose.

●Low cost, high density, optional Desktop Standalone and 19” Rack-Mounted 1U unit.

●High performance CPU, massive capacity memory.

●10M/100M auto negotiation,MDI/ MDIX auto negotiation.

●Dual WAN uplink, Each WAN have individual IP and MAC address.

●Support Windows Real Com serial driver mode

●Support common socket operation mode, including TCP Server, TCP Client and UDP server.

●Support Peer to Peer mode between two serial equipment without PC.

●Embed 15KV ESD protection in all signals.

●Web/ Telnet/ Console configuration available.

●Support up to 10 multi connections on one equipment serial port.

● 32 RS232/ RS422/ RS485 serial port, flexible configuration.

●    Processor: 32 bit, 100M

■  Memory: 16 M Bytes

●     LAN Interface

■ Ethernet Port: 2* RJ45

■ 10M/100M auto negotiation

■ MDI/ MDIX auto negotiation

■ Protection: 1.5KV Electromagnetic Isolation

●   Serial Interface

■ Quantity: 32 RS232/ RS422/ RS485

■ Port Type: RJ45

■ RS232 Signal: TxD, RxD, GND

■ RS422 Signal: Tx+, Tx-, Rx+, Rx-, GND

■ RS485(2 Wire): Data+, Data-, GND

■ RS485(4 Wire): Tx+, Tx-, Rx+, Rx-,GND

■ Protection: All signals with 15KV surge protection.

●    Serial Communication Parameters

■ Check Bit: None, Even, Odd, Space, Mark

■ Data Bit: 5, 6, 7, 8

■ Pause Bit: 1, 1.5, 2

■ Flow Control: RTS/ CTS, XON/ XOFF

■ Bit Rate: 110bps~ 256,000bps

■ Console: RS232 Console

●      Software Feature

■ Support Protocol: TCP, UDP, IP, ARP, HTTP, DHCP, ICMP, Telnet

■ Operation System: More than the Windows xp

■ Configuration: Web Browser, Serial/ Telnet Console

●    Mechanical Feature

■ Material: Aluminum Chassis

●    Operation Environment

■ Working Temperature: -20℃～85℃

■ Storage Temperature: -40℃～85℃

■ Relative Humidity: 5%~ 95%, non-condensing

■ No corrosive and solvent gas, no dust and heavy EMI

■ Power input: AC 220V

■ System power consumption: less than 25W

■ Physical Dimension: 1U Chassis: 435mm(W)* 45mm(H)* 230mm(D)
