Point to Point Video Optical Terminal

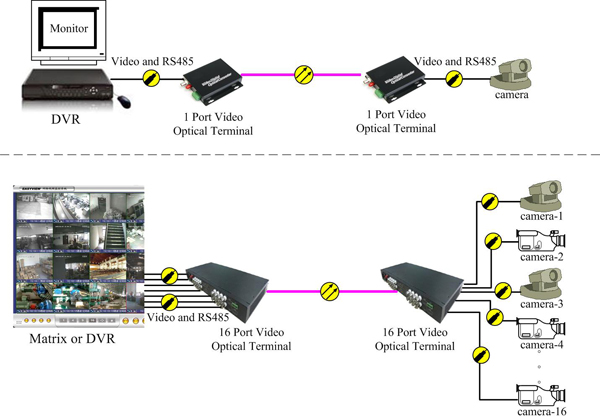

Global Tech GT-VO-1 Series digital non-compressed Video Optical Terminal adopts the lossless digital video coding technology, the digital TDM technology and the high-speed digital optic fiber transmission technology. With the modular design suitable to the integrated transmission requirement for the video/ audio/ data/ Ethernet/ switch signal, GT-VO-1 can transport 1~16 route of video signal, 8~16 route two-direction audio /data/ switch signal or its combination, and 1 route Ethernet signal over one single-mode optical fiber or multi mode optical fiber. With CWDM technology, GT-VO-1 supports up to 64 route video channels over one single-mode fiber. Adopting the high reliable VLSI, Very Large Scale Integrated Circuit, and SMT, Surface Mounting Technology, GT-VO-1 is one of the most advanced transmission products in remote high-resolution real-time video monitoring field.

• Digital non-compressed, lossless transmission for surveillance application.
• Industrial design, high reliability, and full SMT production.
• Compatible with PAL, NTSC, and SECAM video format from CCIR.
• Video transmission beyond the RS250C definition on SNR, DG and DP.
• Within the optical power budget, the video transmission quality is secured and the single-span transmission distance can reach 120km.
• Standalone desktop, Wall-mounted, 19” 1U chassis and 19” 4U configurable chassis.
• With comprehensive Network Management System, all key local and remote operation parameters are monitored and managed, failure auto discovery and alarm report.
• All product series pass the Ministry of Public Security Type Test, and get the Network Access License from the Ministry of Industry and Information Technology.

• Optical Interface
  • Connector Type: ST, SC, FC, PC
  • Transmission Distance: 2/20/60/120 km optional
• Video Interface
  • Channels: Uni-direction/ Bi-direction 1-16 channels
  • Signal Pattern: PAL/NTSC/SECAM
  • In/Output Level: 1Vp-p
  • In/Output Impedance: 75Ω
  • Channel Bandwidth: 6.5MHz~ 8MHz
  • Sampling Frequency: 15.6MHz~ 16.5MHz
  • Quantization Level: 8bit/ 10bit
  • Differential Gain: 7%
  • Differential Phase: 0.7°
  • Weighted SNR: 67 dB
  • Color Brightness Delay Difference: 10ns
  • Color Brightness Gain Difference: ±10%
• Audio Interface
  • Impedance: 10K, Unbalanced
  • Max. Voltage: 3.5Vp-p, Unbalanced
  • Audio Distortion: ≤ 1%
  • Audio SNR: ≥ 85dB
  • Audio Coding: 24 bit digital audio
  • Sampling Rate: 48K
• Asynchronous Data Interface
  • Interface Type: RS232/RS485/RS422/Manchester Code
  • Working Mode: Full/half duplex
  • Communication Rate: 0~ 115.2Kbps
  • Error Rate: < 1x 10 -9
  • Data Connector: RJ45/ PHOENIX/ DB25 connector
• Ethernet Interface
  • 10M/100M auto negotiation
  • Full/half duplex auto negotiation
  • Related Standard: IEEE802.3 IEEE802.1Q(VLAN)
  • MDI/ MIDX auto negotiation
  • Connector Type: RJ45
• Operation Environment
  • Working Temperature: 0°C~ 50°C
  • Storage Temperature: -40°C~ 70°C
  • Relative Humidity: 0~ 95 %, non condensing
  • No corrosive and solvent gas, no dust and heavy EMI
  • Power Supply: AC220V, DC –48V, DC 24V
  • Typical Consumption: ≤ 5W
  • Physical Dimension:
    1~ 4 channel Standalone Desktop:
    188mm(W)*28mm(H)*138mm(D)
    5~ 8 channel Standalone Desktop:
    188mm(W)* 44mm(H)*138mm(D)
    16 channel Chassis:
    483mm(W)*44mm(H)*138mm(D)
    4U Chassis:
    483mm(W)*187mm(H)*238mm(D)
